flexiWAN Hardware Partners
Why partner with flexiWAN?
While you can run flexiWAN basically on any X.86 Hardware platform that complies with our system requirements, there are hardware vendors who partner with us to make sure that flexiWAN works well on their devices.
HW devices are either certified by flexiWAN or pass through a thorough self-certification process carefully analyzed by flexiWAN.
Certified By flexiWAN Advantech
Solutions tailored to your industry
Tiny Network Appliance for Entry Level SD-WAN
- 2-core Intel® Celeron® N3350 or 4-core Pentium® N4200
- Ideal for retail, POS and SME installations
- 4 RJ45 GbE ports for LAN or WAN connectivity
- Optional modules for WiFI and 4G/LTE WAN uplink
Fan-Less Network Appliances for Diverse Deployments
- Intel® Atom® C3000 System-on-Chip with Intel® QuickAssist Technology at 10Gbps and Intel® AES-NI and VT-d Support
- Wide-operating temperature support -20 ~ 70°C or 0 ~ 40°C
- 6x Ethernet interfaces with 6xRJ-45 or 4x RJ-45 + 2x 10G/1G SFP+ ports
- Design reserved for 5G, Advanced-LTE module, IEEE 802.11ax (WiFi6) and IEEE 802.11a/b/g/n/ac (WiFi5) module
- Reliability enhancement with better ESD/Surge protection design for severe environment

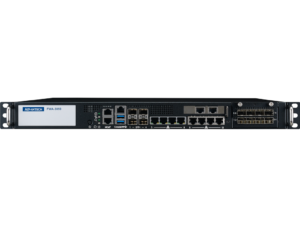

Configurable Universal Network Appliance to Fit Scalable Enterprise Deployments
- Compact 1U white box uCPE architected around Intel® Xeon® D-2100 processors
- Integrated Intel® QuickAssist Technology for encryption acceleration
- Flexible GbE, 10GbE, 25GbE, 40GbE and wireless connectivity
- 1+1 redundant PSU + advanced management and security features
Silicom
Silicom connectivity solutions

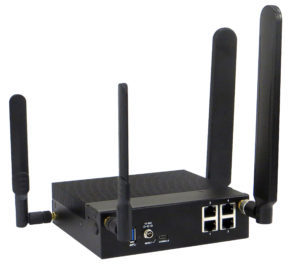

NANO

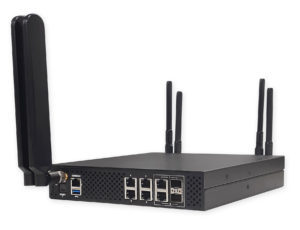

uCPE Cordoba DESKTOP

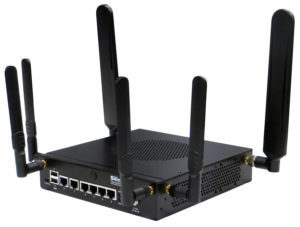

RCC-VE2
Intel Atom® C3000 Processor series Based CPE
uCPE Based on Intel Atom® C3000 and C3000R Processor
uCPE Based on Intel Atom® C2000 Processor
- uCPE with Intel® Atom® C3000 System-on-Chip
- Supports SR-IOV on all ports by Intel SOC integrated MAC
- 4 ports RJ45
- Optional SIM, 3G, 4G LTE module and WiFi module
- Low cost
- Small form factor (120x120mm)
- uCPE with Intel® Atom® C3000 and C3000R System-on-Chip
- 2, 4, and 8 core and optional QAT
- Supports Intel SOC integrated MAC and Intel Ethernet Controller
- IO include 4 * 2.5G ports, 2 * SFP+ and 2 * Combo SFP/RJ45 port
- Optional: WiFi 802.11ax module and Dual SIM LTE/5G uplinks
- Compact and low cost design
- 2 Cores C2358 or 4 Cores C2558 Intel® Atom™ with Quick Assist (AES-NI) support
- 6XRJ45 (4XRJ45 + 2XSFP configuration available as well) ports
- Optional modules for LTE and WIFI uplink
AAEON
Innovating the solutions you need tomorrow, today
FWS-2280
Desktop Network Appliance With Intel® Elkhart Lake Processor J6412 (Certified by FlexiWAN)
- Intel® Elkhart Lake J6412
- Comes with flexiWAN preinstalled
- Default with 8GB RAM/ 64GB SSD storage
- Intel® i211 GbE x 4, Intel® i210 SFP x 1
- Mini-Card full size (with SIM socket) x1
- Mini-Card half size slot x1
- Redundant power support
FWS-2365
Desktop Network Appliance with Intel® Atom® Processor C3000 series
- Intel® Atom® Processor C3000 series
- Comes with flexiWAN preinstalled
- Default with 8GB RAM/ 64GB SSD/ On board 16GB eMMC
- 10/100/1000Base-TX Ethernet x 6
- Supports 1 pair bypass (LAN 3 ~ 4)
- 2 x 10G SFP+ Port
- SATA III Port x 2
- Mini-card slot x 1 (Half-size, PCIe), Mini-card slot x 1 (Full-size, PCIe + USB2.0) with SIM slot
- M.2 B key 3052 x 1 (USB3.0) with SIM slot
- USB3.0 Type A Port x 2 (1 Port only support USB2.0 signal)
Landitec
Landitec Distribution
scope7-flexiwan-100
scope7-flexiwan-2000
scope7-flexiwan-3000
Fanless Appliance with AMD GX-412TC CPU, 4GB DDR3 RAM & 16 GB mSATA
Fanless Appliance with Intel C3558, 8GB DDR4 RAM & 32GB SSD storage
Desktop Appliance with Intel C3758 CPU, 8GB DDR4 RAM & 32GB SSD storage
- AMD Embedded G series GX-412TC CPU with AES-NI
- 3 x GbE LAN (with Intel i211AT)
- 4GB DDR3 DRAM
- 16GB mSATA SSD storage
- Quad Core Intel® C3558 Atom™ CPU with AES-NI
- 6 x GbE LAN (with 2x Intel i210AT) and SoC integrated i354 (with Marvell 88E1543 PHY)
- 8GB DDR4 RAM
- 32GB SSD storage + 8GB eMMC
- Octa Core Intel® C3758 Atom™ CPU with AES-NI
- 8 x GbE LAN (Intel i211) and 4 x SFP+ GbE (Intel X553) ports
- 8GB DDR4 RAM
- 32GB SSD storage
Axiomtek
Scalable appliance to fit multiple environment types.
Axiomtek NA362
- Model: Axiomtek NA362
- 4-8 core Intel® Atom® Processor C3338/C3558/C3758
- 6x GbE Intel® i210 + optional 4 10GbE SFP+
- LTE and WiFi supported
iBase
Delivering high-quality products and excellent services.
INA1600
Versatile connectivity appliance based on AMD Ryzen
- AMD Ryzen™ Embedded V1605B/R1505G/R2000
- 6x GbE ports
- LTE and WiFI
- Ready for diverse deployments
Lanner
Innovating the solutions you need tomorrow, today
NCA-1513
Desktop appliance for diverse deployments
- Intel® Atom® C3000 (Denverton)
- 6x or 4x GbE RJ45, or 4x GbE RJ45 + 2x SFP
- Max 32GB RAM DDR4
- WiFi / LTE connectivity

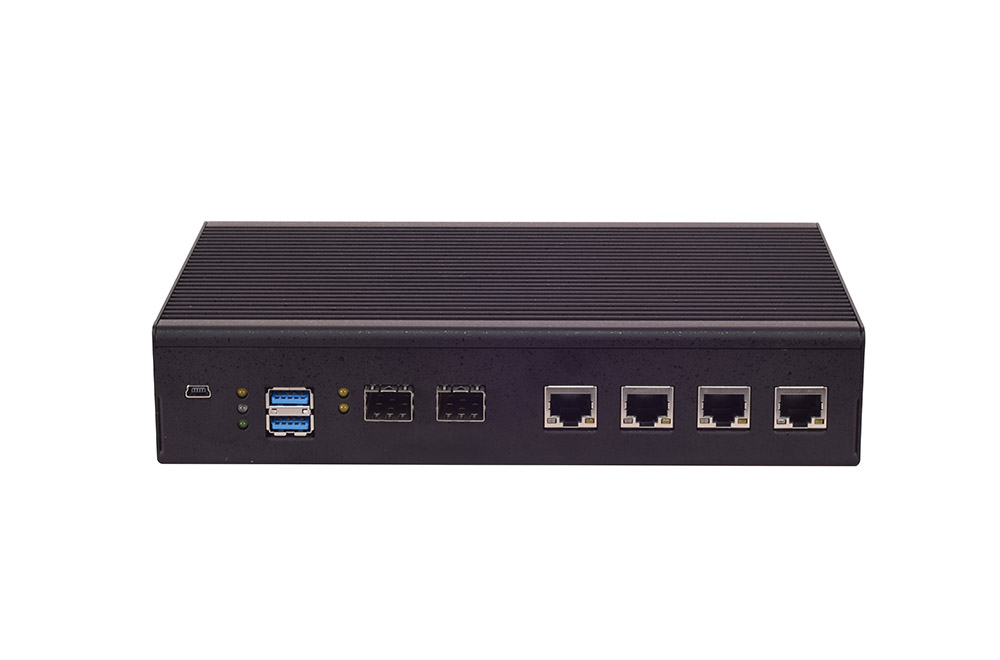

NCA-1510
Desktop Network Appliance Powered by Intel® Atom® C3000 (Denverton) CPU
- uCPE with Intel® Atom™ Processor C3000
- Intel® Atom® C3000 System-on-Chip with Intel® QuickAssist Technology at 10Gbps and Intel® AES-NI and VT-d Support
- Supports SR-IOV on all ports by Intel SOC integrated MAC and Intel i350 Ethernet Controller
- Optional PoE+ kit to support up to two 25.5W ports
Self-Certified Acrosser Technology
Device Model name: AND-DNV3N3
- Intel® Denverton C3000 Platform
- 2~8 core SoC options
- 1/2 x SO-DIMM DDR4
- 1 x 2.5″ SSD, & 1 x CFast
- Smart cooling fan(C3758)
- Fanless Design (C3338, C3558)
- Dual DC-in for redundancy
Data sheet & additional information can be found here.
Device Model name: ANR-DNV3N3
- Intel® Denverton C3000 Platform
- 4~16 core SoC options
- 2/4 x SO-DIMM DDR4
- 3 x 2.5″ SSD, & 1 x CFast
- 8/9 x GbE Copper & 2 x 10GbE fiber
- Optional 4x PoE GbE ports
- Smart cooling fan
- Optional Redundant PSU
Data sheet & additional information can be found here.
AEWIN Technologies
Device Model name: SCB-6990
Fanless Desktop Appliance Designed with Intel Atom® C3000 Processor
- uCPE with Intel® Atom™ C3000 System-on-Chip
- Built-in Intel® QuickAssist Technology
- Supports SR-IOV on Intel® i350 Ethernet Controllers
- Standard 6x 1GbE RJ45 and 2x 1GbE SFP ports
- Optional: On-board TPMOptional: On-board eMMC storage
Data sheet & additional information can be found here.
Portwell
Device Model name: CAR-2080
Rackmount 1U Network Appliance with Intel Coffee Lake platform
- uCPE with Intel® Atom™ C3000 System-on-Chip
- Intel Coffee Lake / Coffee Lake Refresh Desktop Processor
- 2 x DDR4 2666MHz UDIMMs up to 64GB
- 3 x SATA 3.0 and 1 x M.2 Key B
- 2 x USB 3.0, 1x RJ45 Console supported
- 2 x Pair Bypass 3.0 supported
- 6 x GbE RJ45 ports
- Optional: 4 x GbE SFP/RJ45 ports
- Optional: 1 x front-access Portwell NIC expansion module supported
Data sheet & additional information can be found here.
Quanta Cloud Technology
Device Model name: EGT23D-DT
- uCPE with Intel® Atom® C3000 System-on-Chip supports 2/4/8/12 cores
- Security with Intel® QuickAssist Technology and TPM 1.2/2.0 SPI module
- Connectivity with 2 GbE RJ45 for WAN and 4 GbE RJ45 for LAN
- Fanless design and PSU redundancy
- Optional 4G LTE/5G module with 4 antennas and dual nano SIM cards
- Optional WiFi/WiFi6 module with 4 antennas
Data sheet & additional information can be found here.
